Product Description

Key Features
  • 3-Axis Gimbal with Multicamera System
  • 20MP Wide-Angle Camera
  • 48MP Medium Tele & Telephoto Camera
  • Up to 1.1-Mile Laser Rangefinder
  • Four Intelligent Flight Modes

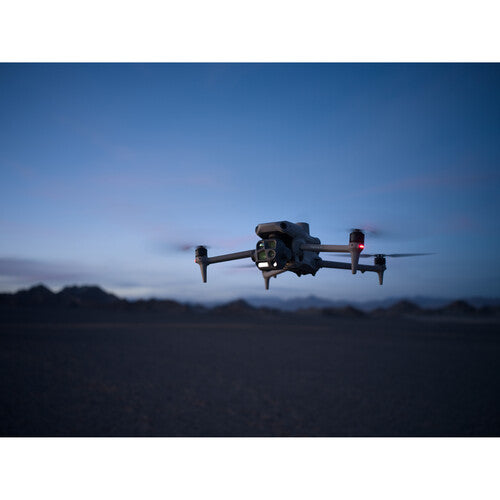

  • Low-Light Flying with Night Scene Mode
  • Multidirectional Surveying/Mapping
  • O4 Transmission up to 15.5 Miles
  • Open Developer Support
Key Specs
Maximum Flight Time
49 Minutes
Remote ID
Yes
Camera System
Wide
20 MP, 4/3"-Type CMOS Sensor with 24mm-Equivalent, f/2.8 Lens (84° FoV)
Medium Telephoto
48 MP, 1/1.3"-Type CMOS Sensor with 70mm-Equivalent, f/2.8 Lens (35° FoV)
Telephoto
48 MP, 1/1.5"-Type CMOS Sensor with 168mm-Equivalent, f/2.8 Lens (15° FoV)
Maximum Video Resolution
All Cameras
Up to UHD 4K at 30 fps
Still Image Support
Wide
Up to 20.8 MP (DNG / JPEG / Raw)
Medium Telephoto
Up to 48.7 MP (JPEG)
Telephoto
Up to 50.3 MP (JPEG)
Sensing System
Omnidirectional with Infrared/LiDAR Enhancement
Control Method
Included Transmitter
Weight
2.7 lb / 1219 g (With Propellers, Battery)
3.1 lb / 1420 g (with Maximum Payload)
Performance
Maximum Horizontal Speed
47 mph / 75.6 km/h
Maximum Ascent Speed
22.4 mph / 36.0 km/h
Maximum Descent Speed
17.9 mph / 28.8 km/h
Maximum Wind Resistance
26.8 mph / 43.1 km/h
Maximum Take-Off Altitude
3.7 Miles / 6 km
Maximum Flight Time
49 Minutes
Maximum Hover Time
42 Minutes
Maximum Tilt Angle
35°
Hovering Accuracy
Vision Positioning
±0.3' / 0.1 m
RTK
±0.3' / 0.1 m
GNSS
±1.6' / 0.5 m
Aircraft
Rotor Configuration
Quadcopter
Propeller Size
10.8"
Remote ID
Yes
Aircraft I/O
1x USB-C (Data)
1x E-Port (Expansion)
Operating Conditions
14 to 104°F / -10 to 40°C
Imaging
Number of Cameras
4 (Cannot Be Used Simultaneously)
Camera System
Wide
20 MP, 4/3"-Type CMOS Sensor with 24mm-Equivalent, f/2.8 Lens (84° FoV)
Medium Telephoto
48 MP, 1/1.3"-Type CMOS Sensor with 70mm-Equivalent, f/2.8 Lens (35° FoV)
Telephoto
48 MP, 1/1.5"-Type CMOS Sensor with 168mm-Equivalent, f/2.8 Lens (15° FoV)
Zoom
112x Optical
Minimum Focus Distance
Wide
3.3' / 1 m
Medium Telephoto
9.8' / 3 m
Telephoto
9.8' / 3 m
ISO Sensitivity Range
Wide
100 to 25,600 (Extended: 100 to 204,800)
Medium Telephoto
100 to 25,600 (Extended: 100 to 409,600)
Telephoto
100 to 25,600 (Extended: 100 to 409,600)
Night Vision
No
Shutter Speed
Wide
Electronic Shutter: 1/8000 to 2 Seconds (Photo/Video)
Mechanical Shutter: 1/2000 to 2 Seconds (Photo/Video)
Medium Telephoto
1/8000 to 2 Seconds (Photo/Video)
Telephoto
1/8000 to 2 Seconds (Photo/Video)
Maximum Video Resolution
All Cameras
Up to UHD 4K at 30 fps
Still Image Support
Wide
Up to 20.8 MP (DNG / JPEG / Raw)
Medium Telephoto
Up to 48.7 MP (JPEG)
Telephoto
Up to 50.3 MP (JPEG)
Photo Modes
Interval, Single Shot
Media/Memory Card Slot
In Aircraft Body
microSD/microSDHC/microSDXC
In Remote/Transmitter
SD/SDHC/SDXC
Internal Storage
In Remote/Transmitter
128 GB
Gimbal
Number of Axes
3: Pitch (Tilt), Roll, Yaw (Pan)
Rotation Range
Controllable Range
Pitch (Tilt): 125° (-90 to 35°)
Mechanical Range
Yaw (Pan): 130° (-65 to 65°)
Roll: 104° (-52 to 52°)
Pitch (Tilt): 190° (-140 to 50°)
Follow Speed
Tilt: 100°/s
Stabilization Accuracy
±0.007°
Avoidance/Sensing System
Sensing System
Omnidirectional with Infrared/LiDAR Enhancement
Sensing System Capabilities
Forward
Measurement Range: 1.3 to 656.2' / 0.4 to 200 m
Max Speed: 47 mph / 75.6 km/h
Field of View: 90° (Horizontal) / 135° (Vertical)
Backward
Measurement Range: 1.3 to 656.2' / 0.4 to 200 m
Max Speed: 47 mph / 75.6 km/h
Field of View: 90° (Horizontal) / 135° (Vertical)
Lateral
Measurement Range: 1.6 to 656.2' / 0.5 to 200 m
Max Speed: 47 mph / 75.6 km/h
Field of View: 90° (Vertical) / 90° (Horizontal)
Downward
Measurement Range: 1.0 to 61.7' / 0.3 to 18.8 m
Max Speed: 22.4 mph / 36 km/h
Field of View: 160° (Front-to-Back) / 160° (Side-to-Side)
Remote Controller / Transmitter
Control Method
Included Transmitter
Transmission System
OcuSync 4.0 (OC4)
Frequencies: 2.4 GHz (2.4 to 2.4835) / 5.1 GHz (5.15 to 5.25) / 5.8 GHz (5.725 to 5.85)
Power at 2.4G: 33 dBm (FCC) / 20 dBm (CE/MIC/SRRC)
Power at 5.1G: 23 dBm (CE/FCC)
Power at 5.8G: 33 dBm (FCC) / 30 dBm (SRRC) / 14 dBm (CE)
Wi-Fi 6 (802.11ax)
Frequencies: 2.4 GHz (2.4 to 2.4835) / 5.1 GHz (5.15 to 5.25) / 5.8 GHz (5.725 to 5.85)
Power at 2.4G: 26 dBm (FCC) / 20 dBm (CE/MIC/SRRC)
Power at 5.1G: 23 dBm (FCC)
Power at 5.8G: 23 dBm (FCC/SRRC) / 14 dBm (CE)
Bluetooth 5.2
Frequencies: 2.4 GHz (2.4 to 2.4835)
Power at 2.4G: 10 dBm
Maximum Operating Distance
15.5 Miles / 25 km
Transmitter I/O
1x USB-C (Power)
1x HDMI (Video)
1x USB-A (Data)
Clean Video Output
No
Battery Type
Built-In Lithium-Ion (6500 mAh)
Operating Temperature
-4 to 122°F / -20 to 50°C
Mobile App Compatible
No
Built-In Display
7.02" (1920 x 1200) Touchscreen LCD, 1400 nits/ cd/m2
Dimensions
10.6 x 6.4 x 3.7" / 268 x 163 x 94.5 mm
Flight Battery
Battery Chemistry
Lithium-Ion
Battery Capacity
6741 mAh / 99.5 Wh
Battery Configuration
4 S / 14.76 V
Maximum Charging Power
17 V
Charging Temperature
41 to 104°F / 5 to 40°C
Weight
14.1 oz / 401 g
Charger
Input Power
100 to 240 VAC, 50 / 60 Hz at 2.5 A
Output Voltage
17 V
Power Rating
100 W
General
GNSS Support
GPS, GLONASS, BeiDou, Galileo
Diagonal Size
17.3" / 438.8 mm
Overall Dimensions
10.3 x 5.4 x 4.5" / 260.6 x 138.4 x 113.7 mm (Folded)
15.3 x 12.1 x 5.9" / 387.5 x 307.0 x 149.5 mm (Unfolded)
Weight
2.7 lb / 1219 g (With Propellers, Battery)
3.1 lb / 1420 g (with Maximum Payload)
Packaging Info
Package Weight
16.25 lb
Box Dimensions (LxWxH)
18.1 x 15.8 x 10.3"

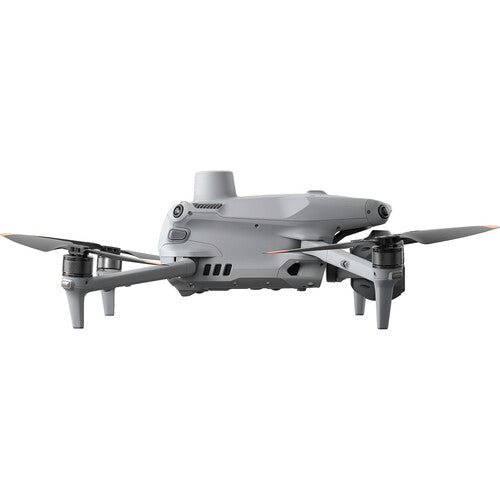

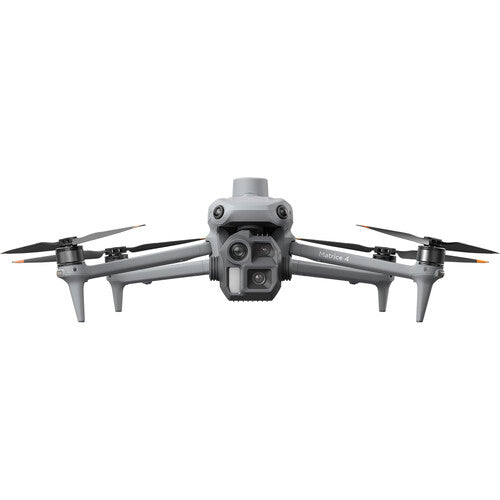

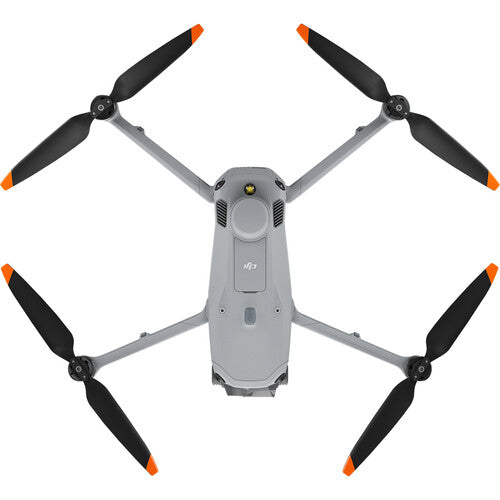

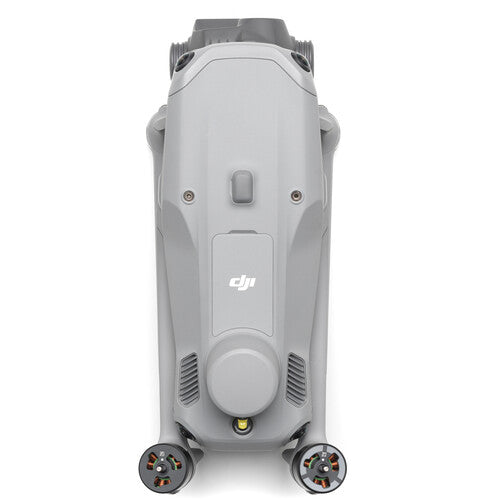

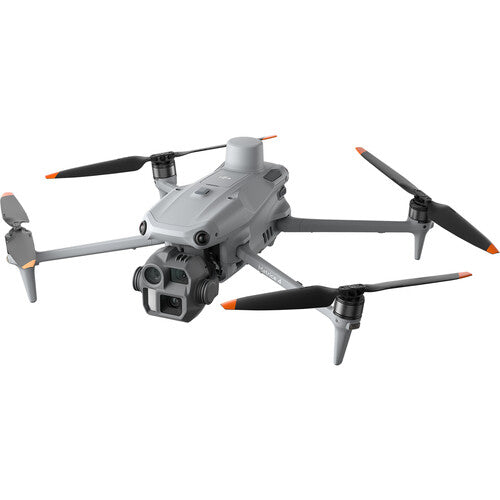

DJI Matrice 4E Overview
