Product Description

Key Features

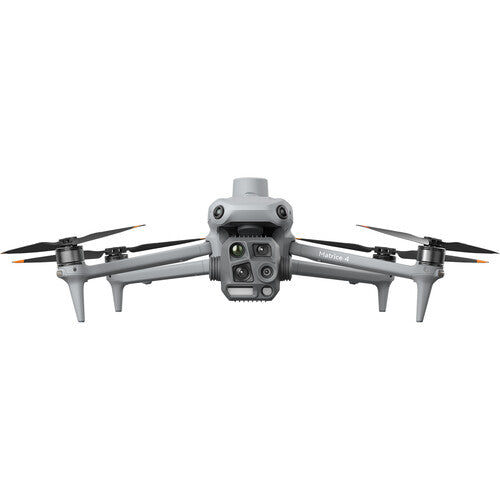

  • 3-Axis Gimbal with Multi-Camera System
  • 48MP Wide-Angle Camera
  • 48MP Medium Tele & Telephoto Camera
  • Thermal Camera, NIR Light & Rangefinder
  • Four Intelligent Flight Modes

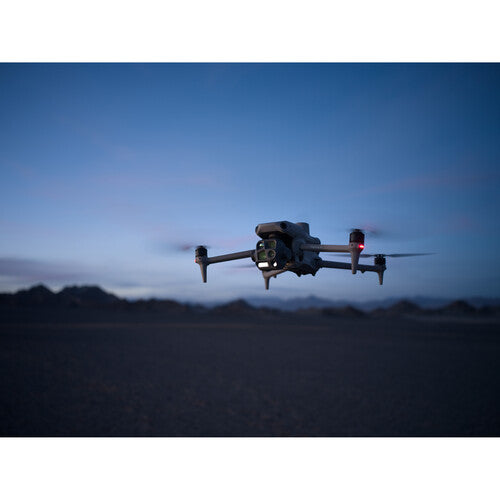

  • Low-Light Flying with Night Scene Mode
  • Multidirectional Surveying/Mapping
  • O4 Transmission up to 15.5 Miles
  • Open Developer Support

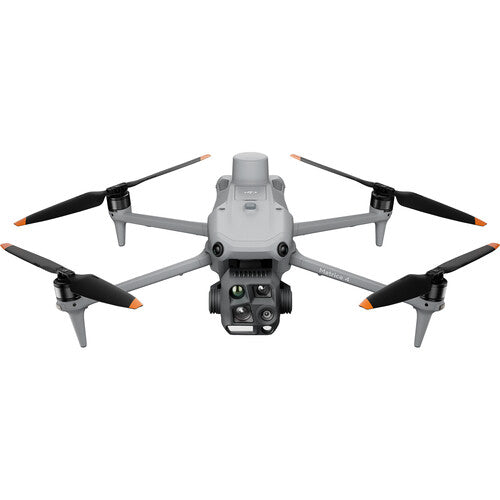

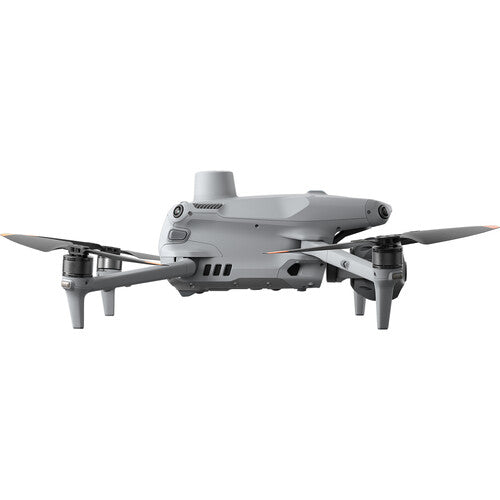

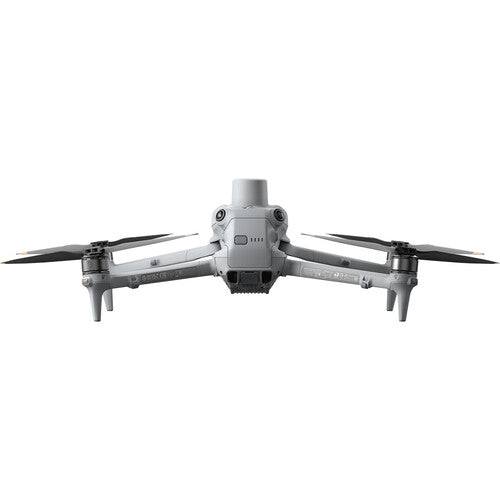

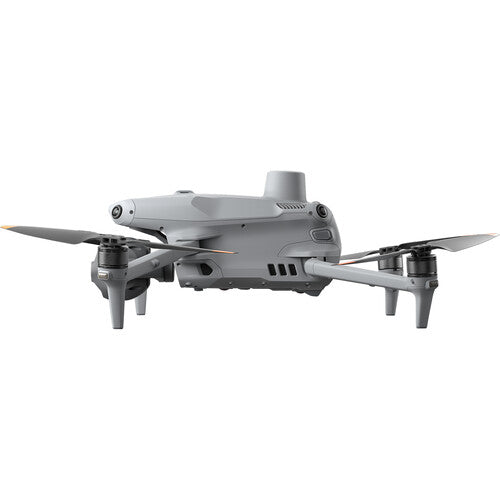

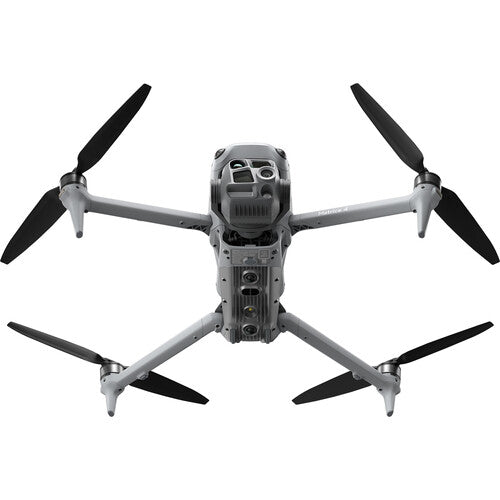

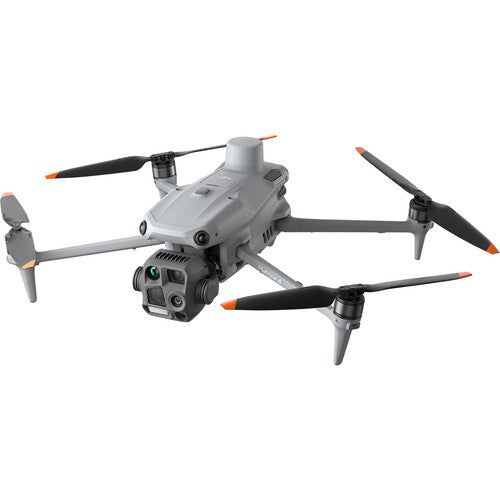

DJI Matrice 4T Overview


Key Specs
Maximum Flight Time
49 Minutes
Remote ID
Yes
Camera System
Wide
48 MP, 1/1.3"-Type CMOS Sensor with 24mm-Equivalent, f/1.7 Lens (82° FoV)
Medium Telephoto
48 MP, 1/1.3"-Type CMOS Sensor with 70mm-Equivalent, f/2.8 Lens (35° FoV)
Telephoto
1/1.5"-Type CMOS Sensor with 168mm-Equivalent, f/2.8 Lens (15° FoV)
Thermal
Vanadium Oxide (VOX) Sensor with -4 to 1022°F / -20 to 550°C Measurement Range with 53mm-Equivalent, f/1 Lens (45° FoV)
Maximum Video Resolution
Wide
Up to UHD 4K at 30 fps
Medium Telephoto
Up to UHD 4K at 30 fps
Telephoto
Up to UHD 4K at 30 fps
Thermal
Up to 1280 x 1024 at 30 fps
Still Image Support
Wide
Up to 48.7 MP (JPEG)
Medium Telephoto
Up to 48.7 MP (JPEG)
Telephoto
Up to 50.3 MP (JPEG)
Thermal
Up to 1.3 MP (JPEG / RJPEG)
Sensing System
Omnidirectional with Infrared/LiDAR Enhancement
Control Method
Included Transmitter
Weight
2.7 lb / 1219 g (With Propellers, Battery)
3.1 lb / 1420 g (with Maximum Payload)
Performance
Maximum Horizontal Speed
47 mph / 75.6 km/h
Maximum Ascent Speed
22.4 mph / 36.0 km/h
Maximum Descent Speed
17.9 mph / 28.8 km/h
Maximum Wind Resistance
26.8 mph / 43.1 km/h
Maximum Take-Off Altitude
3.7 Miles / 6 km
Maximum Flight Time
49 Minutes
Maximum Hover Time
42 Minutes
Maximum Tilt Angle
35°
Hovering Accuracy
Vision Positioning
±0.3' / 0.1 m
RTK
±0.3' / 0.1 m
GNSS
±1.6' / 0.5 m
Aircraft
Rotor Configuration
Quadcopter
Propeller Size
10.8"
Remote ID
Yes
Aircraft I/O
1x USB-C (Data)
1x E-Port (Expansion)
Operating Conditions
14 to 104°F / -10 to 40°C
Imaging
Number of Cameras
4 (Cannot Be Used Simultaneously)
Camera System
Wide
48 MP, 1/1.3"-Type CMOS Sensor with 24mm-Equivalent, f/1.7 Lens (82° FoV)
Medium Telephoto
48 MP, 1/1.3"-Type CMOS Sensor with 70mm-Equivalent, f/2.8 Lens (35° FoV)
Telephoto
1/1.5"-Type CMOS Sensor with 168mm-Equivalent, f/2.8 Lens (15° FoV)
Thermal
Vanadium Oxide (VOX) Sensor with -4 to 1022°F / -20 to 550°C Measurement Range with 53mm-Equivalent, f/1 Lens (45° FoV)
Zoom
Telephoto
112x Digital
Thermal
28x Digital
Minimum Focus Distance
Wide
3.3' / 1 m
Medium Telephoto
9.8' / 3 m
Telephoto
9.8' / 3 m
Thermal
16.4' / 5 m
ISO Sensitivity Range
Wide
100 to 25,600 (Extended: 100 to 409,600)
Medium Telephoto
100 to 25,600 (Extended: 100 to 409,600)
Telephoto
100 to 25,600 (Extended: 100 to 819,200)
Night Vision
Full Color Capability
Shutter Speed
Wide
1/8000 to 2 Seconds (Photo/Video)
Medium Telephoto
1/8000 to 2 Seconds (Photo/Video)
Telephoto
1/8000 to 2 Seconds (Photo/Video)
Maximum Video Resolution
Wide
Up to UHD 4K at 30 fps
Medium Telephoto
Up to UHD 4K at 30 fps
Telephoto
Up to UHD 4K at 30 fps
Thermal
Up to 1280 x 1024 at 30 fps
Still Image Support
Wide
Up to 48.7 MP (JPEG)
Medium Telephoto
Up to 48.7 MP (JPEG)
Telephoto
Up to 50.3 MP (JPEG)
Thermal
Up to 1.3 MP (JPEG / RJPEG)
Photo Modes
Interval, Single Shot
Media/Memory Card Slot
In Aircraft Body
microSD/microSDHC/microSDXC
In Remote/Transmitter
SD/SDHC/SDXC
Internal Storage
In Remote/Transmitter
128 GB
Gimbal
Number of Axes
3: Pitch (Tilt), Roll, Yaw (Pan)
Rotation Range
Controllable Range
Pitch (Tilt): 125° (-90 to 35°)
Mechanical Range
Yaw (Pan): 130° (-65 to 65°)
Roll: 104° (-52 to 52°)
Pitch (Tilt): 253° (-140 to 113°)
Follow Speed
Tilt: 100°/s
Stabilization Accuracy
±0.007°
Avoidance/Sensing System
Sensing System
Omnidirectional with Infrared/LiDAR Enhancement
Sensing System Capabilities
Forward
Measurement Range: 1.3 to 656.2' / 0.4 to 200 m
Max Speed: 47 mph / 75.6 km/h
Field of View: 90° (Horizontal) / 135° (Vertical)
Backward
Measurement Range: 1.3 to 656.2' / 0.4 to 200 m
Max Speed: 47 mph / 75.6 km/h
Field of View: 90° (Horizontal) / 135° (Vertical)
Lateral
Measurement Range: 1.6 to 656.2' / 0.5 to 200 m
Max Speed: 47 mph / 75.6 km/h
Field of View: 90° (Vertical) / 90° (Horizontal)
Downward
Measurement Range: 1.0 to 61.7' / 0.3 to 18.8 m
Max Speed: 22.4 mph / 36 km/h
Field of View: 160° (Front-to-Back) / 160° (Side-to-Side)
Remote Controller / Transmitter
Control Method
Included Transmitter
Transmission System
OcuSync 4.0 (OC4)
Frequencies: 2.4 GHz (2.4 to 2.4835) / 5.1 GHz (5.15 to 5.25) / 5.8 GHz (5.725 to 5.85)
Power at 2.4G: 33 dBm (FCC) / 20 dBm (CE/MIC/SRRC)
Power at 5.1G: 23 dBm (CE/FCC)
Power at 5.8G: 33 dBm (FCC) / 30 dBm (SRRC) / 14 dBm (CE)
Wi-Fi 6 (802.11ax)
Frequencies: 2.4 GHz (2.4 to 2.4835) / 5.1 GHz (5.15 to 5.25) / 5.8 GHz (5.725 to 5.85)
Power at 2.4G: 26 dBm (FCC) / 20 dBm (CE/MIC/SRRC)
Power at 5.1G: 23 dBm (FCC)
Power at 5.8G: 23 dBm (FCC/SRRC) / 14 dBm (CE)
Bluetooth 5.2
Frequencies: 2.4 GHz (2.4 to 2.4835)
Power at 2.4G: 10 dBm
Maximum Operating Distance
15.5 Miles / 25 km
Transmitter I/O
1x USB-C (Power)
1x HDMI (Video)
1x USB-A (Data)
Clean Video Output
No
Battery Type
Built-In Lithium-Ion (6500 mAh)
Operating Temperature
-4 to 122°F / -20 to 50°C
Mobile App Compatible
No
Built-In Display
7.02" (1920 x 1200) Touchscreen LCD, 1400 nits/ cd/m2
Dimensions
10.6 x 6.4 x 3.7" / 268 x 163 x 94.5 mm
Flight Battery
Battery Chemistry
Lithium-Ion
Battery Capacity
6741 mAh / 99.5 Wh
Battery Configuration
4 S / 14.76 V
Maximum Charging Power
17 V
Charging Temperature
41 to 104°F / 5 to 40°C
Weight
14.1 oz / 401 g
Charger
Input Power
100 to 240 VAC, 50 / 60 Hz at 2.5 A
Output Voltage
17 V
Power Rating
100 W
General
GNSS Support
GPS, BeiDou, Galileo
Diagonal Size
17.3" / 438.8 mm
Overall Dimensions
10.3 x 5.4 x 4.5" / 260.6 x 138.4 x 113.7 mm (Folded)
15.3 x 12.1 x 5.9" / 387.5 x 307.0 x 149.5 mm (Unfolded)
Weight
2.7 lb / 1219 g (With Propellers, Battery)
3.1 lb / 1420 g (with Maximum Payload)
Packaging Info
Package Weight
16.245 lb
Box Dimensions (LxWxH)
21 x 15.5 x 10.2"
